600 kW Diesel Generator

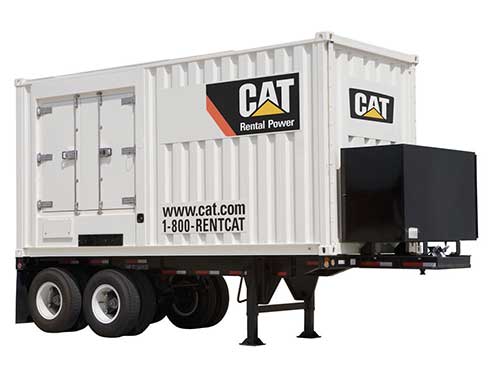

XQ600 Generator

The XQ600 provides 600 kW of standby power. The trailer mounted generator is EPA Tier 4 certified and CSA-282 compliant, with fully weatherproof and sound attenuated enclosure. Other features include automatic voltage regulation, switchable voltage output and automatic start.

Request a Quote

24HRS 1-866-667-5544

Rating	600 kW (750 kVA) Standby
Frequency	60 Hz
Voltage	208 to 600V
Electrical (@ 0.8 PF)	2080 amps at 208V 3P 902 amps at 480V 3P 721 amps at 600V 3P
Fuel Consumption	148.8 L/hr @ 100% load 112.0 L/hr @ 75% load 78.8 L/hr @ 50% load
Tank Capacity	1620 L
Fuel	Diesel
Control System	Manual/Autostart
Cabling	50 ft. included
Emissions	Tier 4 Certified
Safety	CSA-282
Enclosure	Fully weatherproof and sound attenuated
Automatic Voltage Regulator	Voltage within the limits of ± 0.5% for 3 Phase and ± 1% for Single Phase operation at steady state from no load to full load
Spec Sheet	XQ600 Spec Sheet
