RELIABLE POWER.
COMPACT DESIGN.

Built on the proven CG18 engine platform, our new generator sets offer a compact footprint that’s ideal for urban installations and small-to-medium facilities.

Call Us

1-877-228-7693

DG500

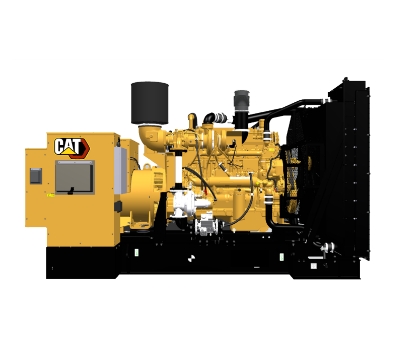

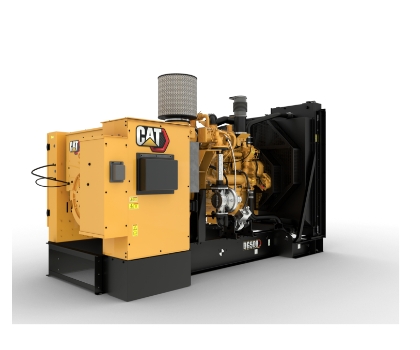

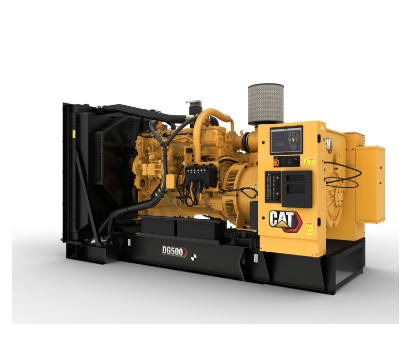

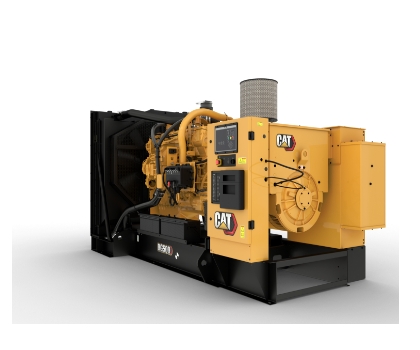

The Cat® DG500 is a high-capacity 500 ekW generator built for critical operations requiring large-scale continuous power.

KEY SPECIFICATIONS

Frequency: 60 Hz
Natural Gas Rating: 500 ekW (Standby) / 450 ekW (LTP)
Emissions/Fuel Strategy: U.S. EPA Certified for Stationary Emergency and Non-Emergency

Frequency:

60 Hz

Natural Gas Rating:

500 ekW (Standby) / 450 ekW (LTP)

Emissions/Fuel Strategy:

U.S. EPA Certified for Stationary Emergency and Non-Emergency

Voltage Range:

208-600 V

Engine:

Cat® CG18 In-line 6, 4-cycle Natural Gas

Fuel:

Natural Gas

Weight (Dry):

10,337 lb (on narrow skid base) / 11,060 lb (on wide skid base)

Dimensions on narrow skid base (L×W×H):

139’’ x 79’’ x 82.2’’

Dimensions on wide skid base (L×W×H):

196’’ x 85’’ x 82’’

Mission-Critical Power: Ideal for data centers, hospitals, and large industrial facilities.

Advanced Engine Technology: Cat CG18 engine delivers superior transient response and load acceptance.

High Efficiency at Partial Load: Maintains efficiency across a wide range of load profiles.

Modular Design: Allows scalable power systems to grow with operational needs.

Low Operating Noise: Quiet operation with optional Level 2 or Level 3 sound-attenuated enclosures.

1- Placeholder for Request a quote form

A New Standard in Natural Gas Generation

Experience lower emissions, no after-treatment hassles, and seamless integration with hybrid microgrids — with lower operating costs compared to traditional diesel systems.

RELIABLE

Leverage a robust engine platform with factory-completed EPA certification, for peace of mind.

DIGITAL TOOLS

Advanced telematics solutions give you real-time insights and automated control that deliver dependable performance.

EMERGENCY BACK-UPS

Protect critical systems during power outages, with rapid response and reliable startup.

ENVIRONMENTALLY CONSCIOUS

Experience lower emissions, no after-treatment hassles, and seamless integration with hybrid microgrids.

Your Total Power Solution

At Toromont Power Systems, we are committed to helping you power your operations smarter. Whether you are a building operator, manufacturing facility manager, healthcare provider, or consulting engineer.
