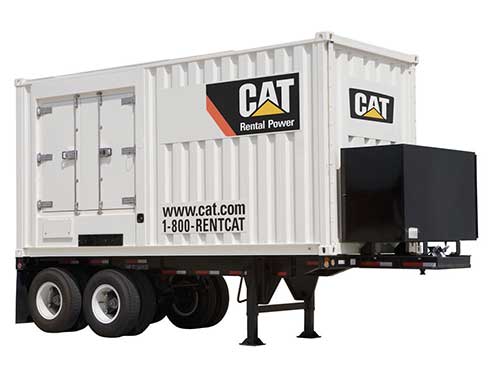

XQ600 Generator
The XQ600 provides 600 kW of standby power. The trailer mounted generator is EPA Tier 4 certified and comes with a fully weatherproof and sound attenuated enclosure. Other features include automatic voltage regulation, switchable voltage output and automatic start.
| Rating |
600 kW (750 kVA) Standby
|
| Frequency |
60 Hz |
| Voltage |
208 to 600V |
Electrical
(@ 0.8 PF) |
2080 amps at 208V 3P
902 amps at 480V 3P
721 amps at 600V 3P |
| Fuel Consumption |
148.8 L/hr @ 100% load
112.0 L/hr @ 75% load
78.8 L/hr @ 50% load |
| Tank Capacity |
1620 L |
| Fuel |
Diesel |
| Control System |
Manual/Autostart |
| Cabling |
50 ft. included |
| Emissions |
Tier 4 Certified |
| Enclosure |
Fully weatherproof and sound attenuated |
| Automatic Voltage Regulator |
Voltage within the limits of ± 0.5% for 3 Phase and ± 1% for Single Phase operation at steady state from no load to full load |
| Spec Sheet |
XQ600 Spec Sheet |
